Raspberry Pi Damaged SD Card Socket Repair

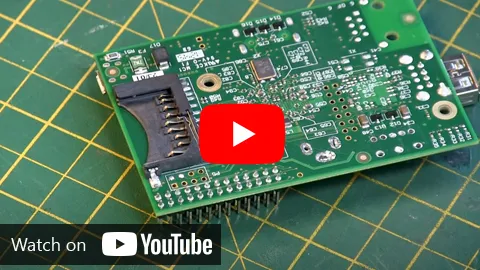

If you, like us, have unfortunately snapped or damaged the SD card socket on the base of your Raspberry Pi while fitting the board into a case, don’t worry. This guide, accompanied by a helpful video, will walk you through the process of repairing your damaged Raspberry Pi, restoring it to full functionality.
Common Issue with Raspberry Pi SD Card Sockets
One common issue Raspberry Pi users encounter is the accidental damage to the SD card socket. This can happen easily when inserting the Raspberry Pi board into a case, especially if the case is a tight fit or if the board is not aligned correctly. A broken or damaged SD card socket can render your Raspberry Pi unusable, as it prevents the device from reading the necessary boot files from the SD card.
Step-by-Step Repair Guide
1. Assess the Damage: Before starting the repair, carefully inspect the SD card socket to understand the extent of the damage. If the plastic housing is cracked or the metal connectors are bent, a replacement will be necessary.
2. Gather Necessary Tools and Parts: To repair the SD card socket, you will need a few tools:
• A precision screwdriver set
• Soldering iron and solder
• Tweezers
• A replacement SD card socket
3. Order the Replacement Socket: The replacement SD card socket we used was ordered from Farnell in the UK. Farnell is a reputable supplier of electronic components, and they offer international shipping, so you can obtain the part no matter where you are located. Make sure to order the correct model compatible with your Raspberry Pi version.
4. Prepare Your Work Area: Ensure you have a clean, well-lit workspace. Use an anti-static mat or wrist strap to protect your Raspberry Pi from static electricity, which can cause further damage.
5. Remove the Damaged Socket:
• Power off your Raspberry Pi and disconnect all cables.
• Use a precision screwdriver to carefully remove any screws securing the SD card socket to the board.
• Gently desolder the damaged socket from the board. Be cautious to avoid damaging the surrounding components.
6. Install the Replacement Socket:
• Position the new SD card socket in place of the old one.
• Solder the new socket to the board, ensuring each connection is secure and free of cold solder joints.
• Use tweezers to help position the socket precisely, and double-check your work to make sure all pins are correctly aligned.
7. Test the Repair: Once the replacement socket is securely installed, reassemble your Raspberry Pi and insert an SD card. Power on the device to ensure it reads the SD card correctly and boots up without issues.
8. Final Steps: If your Raspberry Pi boots up successfully and recognises the SD card, your repair is complete. Carefully place the board back into its case, ensuring no additional pressure is applied to the SD card socket.
Repairing a damaged SD card socket on your Raspberry Pi may seem daunting, but with the right tools and a careful approach, it is entirely manageable. By following this guide and watching the accompanying video, you can save your Raspberry Pi from potential disposal and extend its lifespan. Remember, the replacement socket can be conveniently ordered from Farnell in the UK, or from their international stores, ensuring you have access to the parts you need regardless of your location.
