Breakout Pi Zero

Prototyping board for Raspberry Pi Zero

£4.67 each (excluding VAT: £3.89)
12 available
Product Code:Green
EAN:7426787870132
Add a Mounting Kit Four Pack
for only £3.49 each ex vat
Order Mounting kit to use on our Raspberry Pi boards
Share: Twitter Facebook

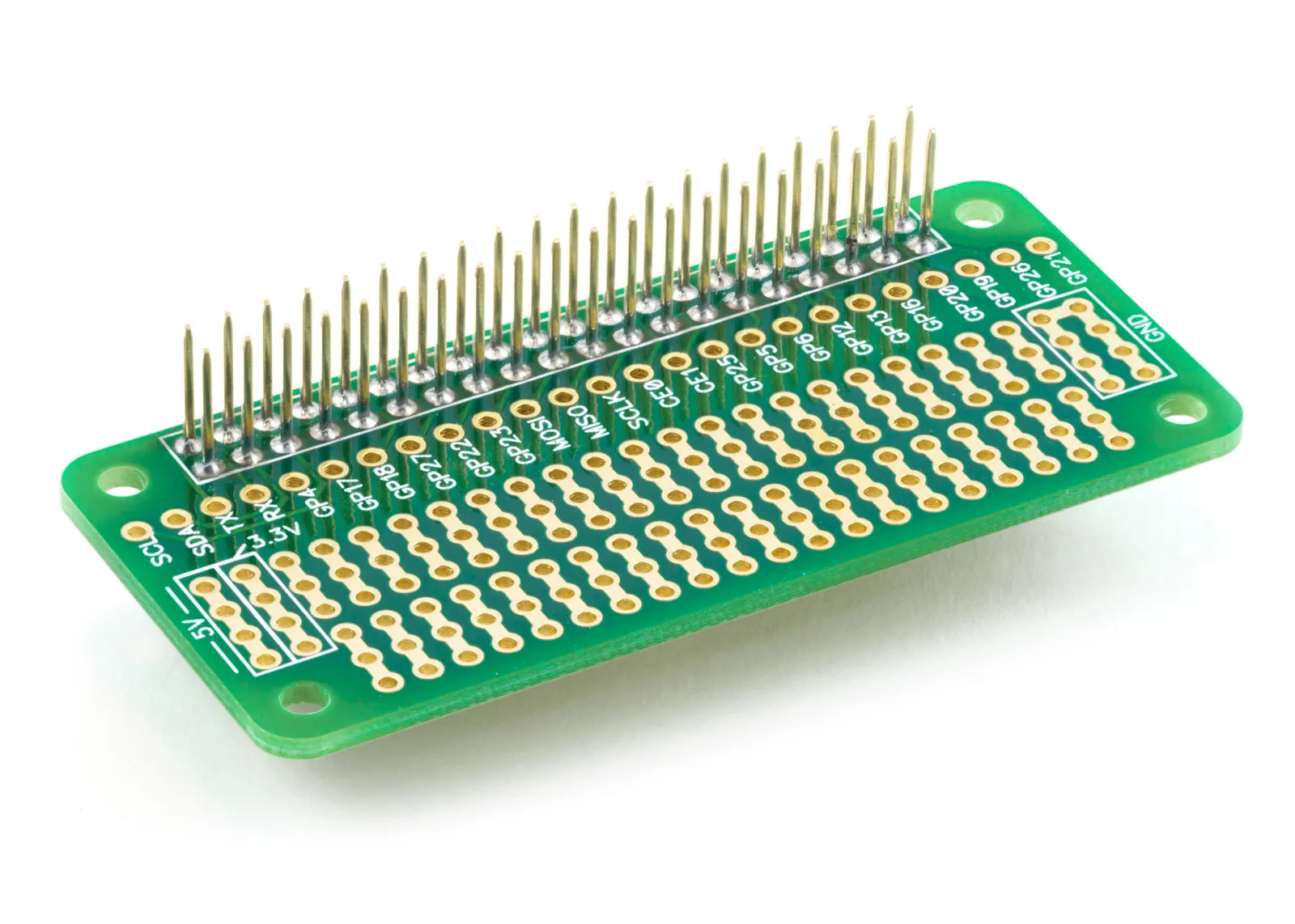

The Breakout Pi Zero is a valuable and versatile prototyping expansion board for the Raspberry Pi Zero and other compatible single-board computers.

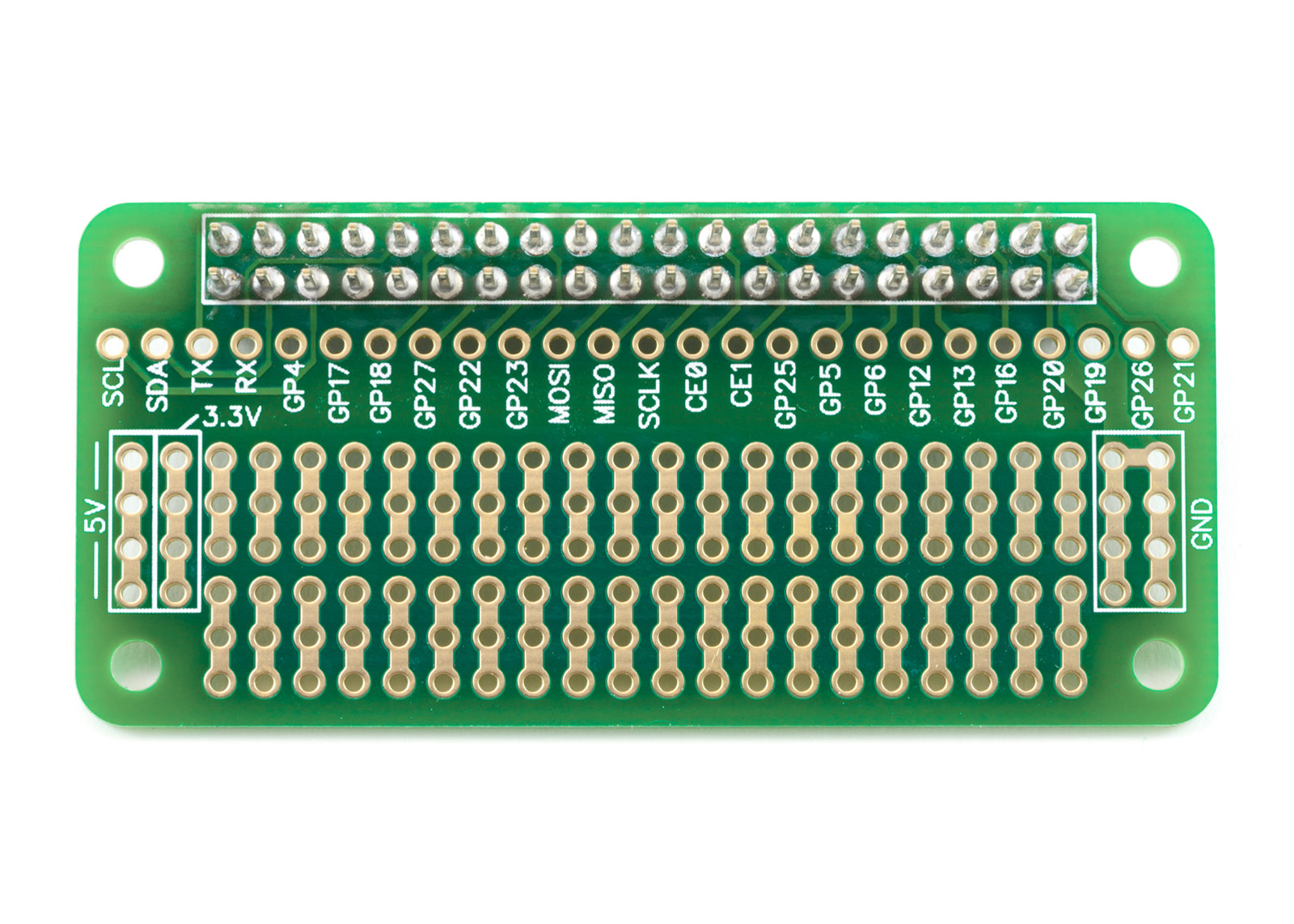

All Raspberry Pi GPIO pins except GPIO 24, ID_SC and ID_SD  are broken out into separate pads. 3.3 volts, 5 volts, and ground rails run down the sides of the prototyping area on board.

The board has a working area with pads arranged into groups of three pins.

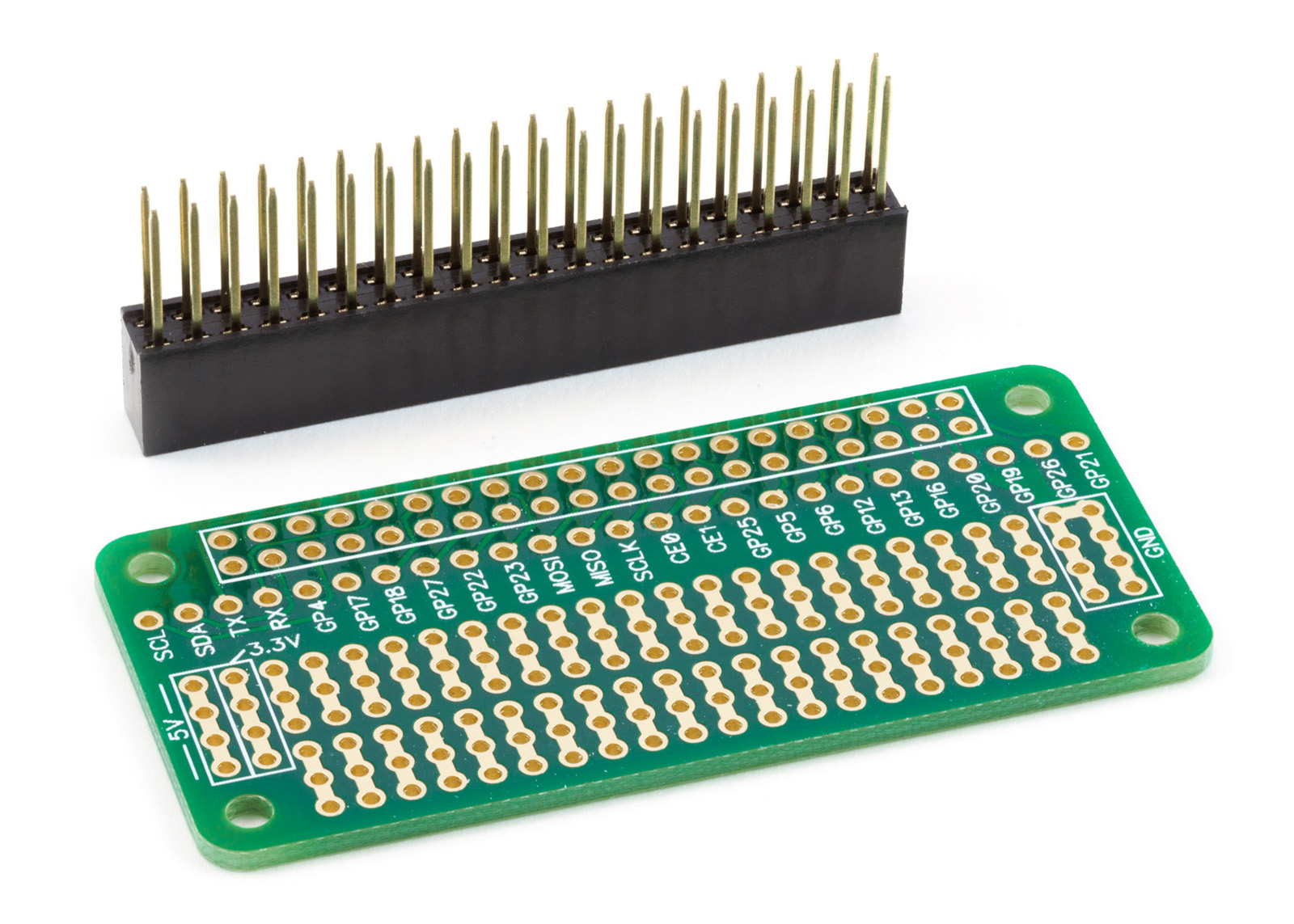

The board is supplied as a ready-to-solder kit with a 40-pin header to connect to the Raspberry Pi.

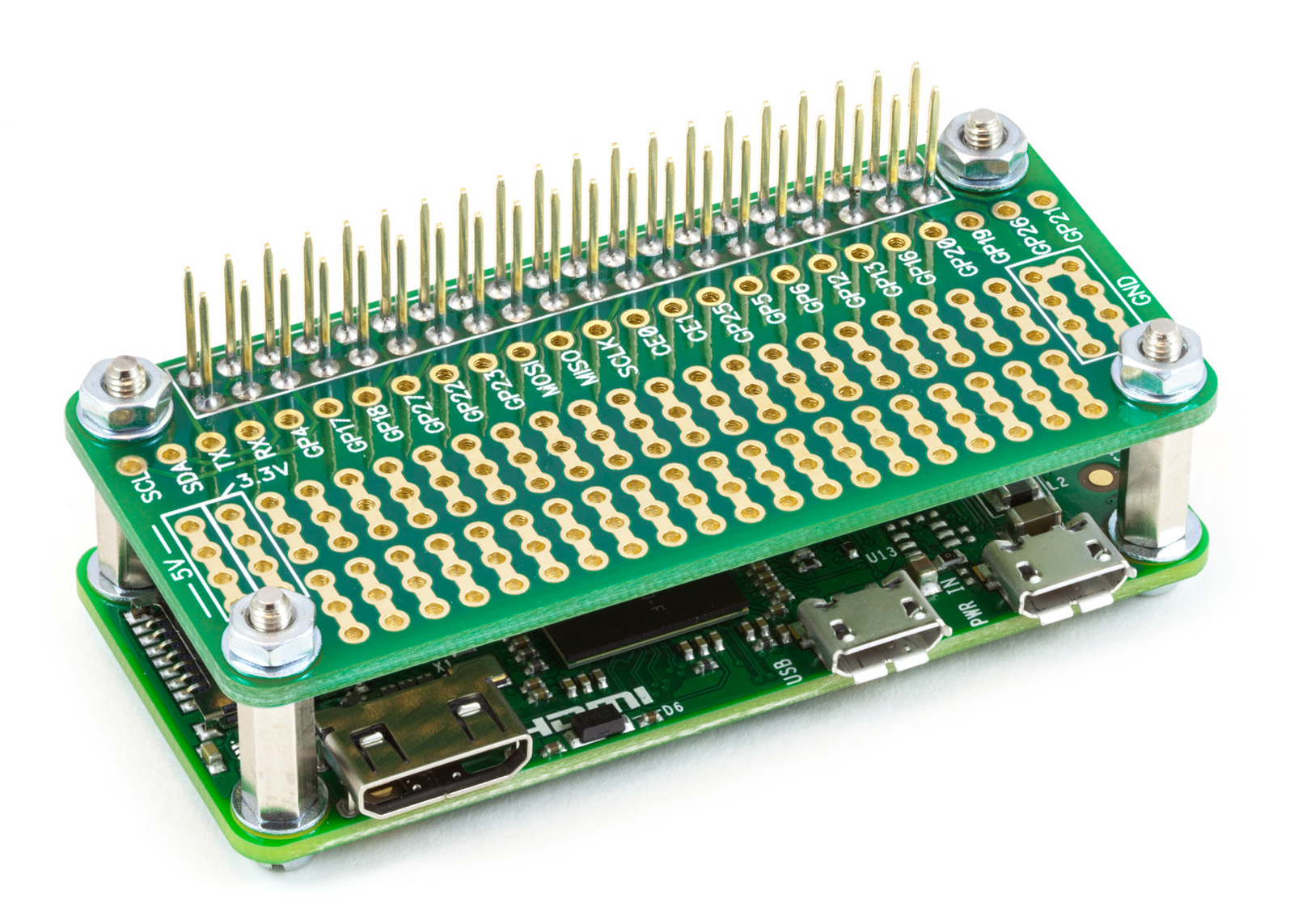

You can use our optional mount kit pack to secure your prototyping board to your Raspberry Pi.


Technical Details

Mechanical Dimensions

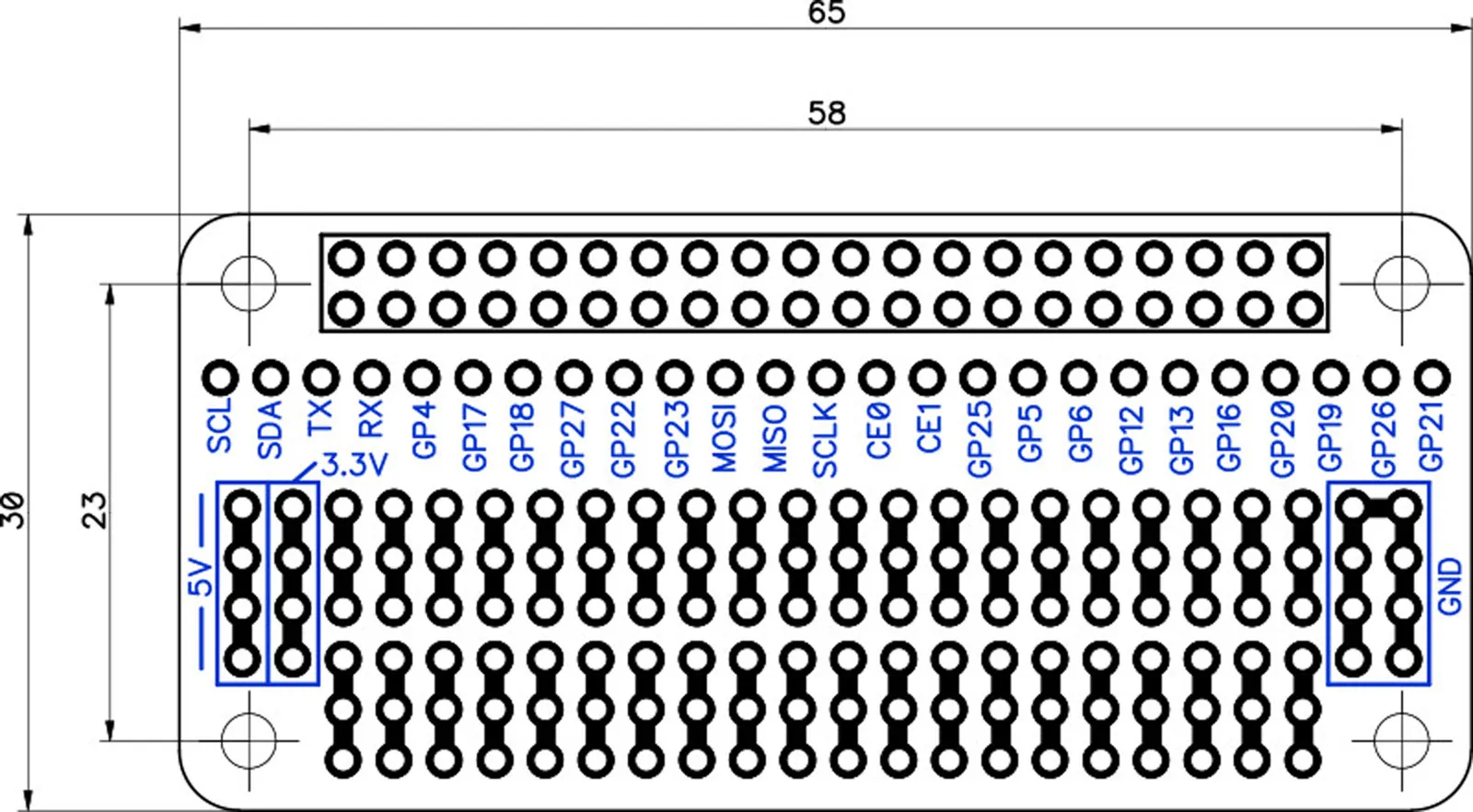

Breakout Pi Zero Mechanical Drawing

Click the image to enlarge


Compatibility

We have tested the Breakout Pi Zero on the following platforms.

Model Status
Raspberry Pi Model A / B
Raspberry Pi 1 Model A+ / B+
Raspberry Pi 2 Model B
Raspberry Pi 3 Model A+ / B / B+
Raspberry Pi 4 Model B
Raspberry Pi 5
Raspberry Pi Zero
Raspberry Pi Zero W / Zero 2 W
Raspberry Pi Compute Module 4 IO Board
Raspberry Pi 400
Orange Pi
Asus Tinker Board
Odroid

Breakout Pi Zero Tutorials
