RTC Pi MicroPython Library

MicroPython Library to use the RTC Pi development board with the Raspberry Pi Pico development board.

The example python files can be found in /ABElectronics_MicroPython_Libraries/RTCPi/demos

Downloading and Installing the library

To download to your Raspberry Pi type in the terminal:

git clone https://github.com/abelectronicsuk/ABElectronics_MicroPython_Libraries.git

To install the MicroPython Library use the Thonny Python IDE from Thonny

Create a file for your chosen board and copy the contents of the python file into that board's directory. For example for the RTC Pi create a new file in Thonny called RTCPi.py and copy contents from RTCPi.py into the new file and save it onto the Raspberry Pi Pico board.

Create a second file where your main program will reside and import the board library at the top of the program.

from RTCPi import RTCPi

Run with "Run Current Command" or F5 in Thonny.

Pins used on the Raspberry Pi Pico:

The RTC Pi library uses the following pins on the Raspberry Pi Pico board.

You will also need to connect 3.3V, 5V and GND on the RTC Pi GPIO header.

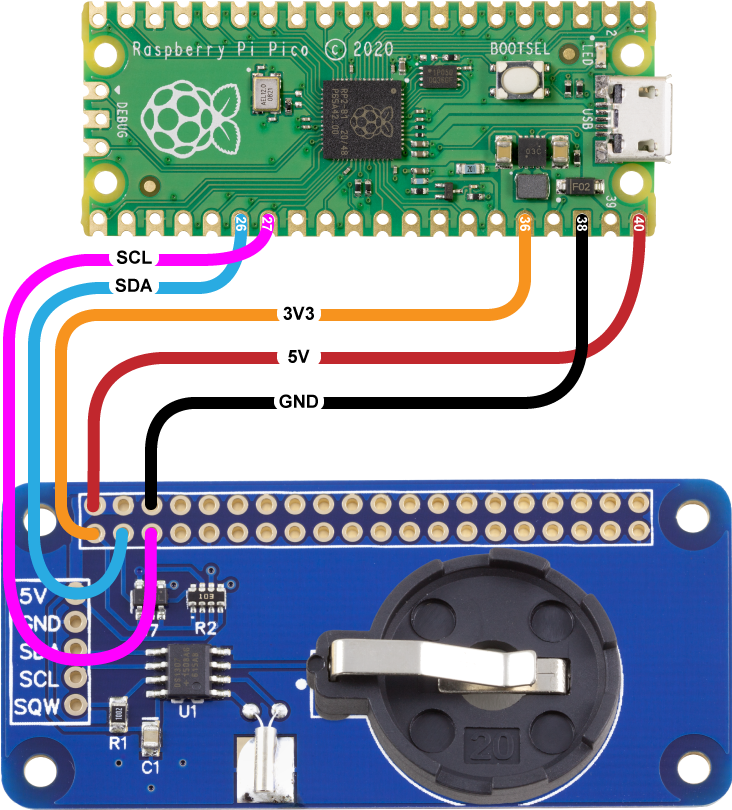

Wiring Diagram:

Class:

RTC(sda, scl)

Parameters:
sda (optional): I2C SDA pin. If no value is set the class will default to pin 20.
scl (optional): I2C SCL pin. If no value is set the class will default to pin 21.

Functions:

set_date(date)

Set the date and time on the RTC in ISO 8601 format - YYYY-MM-DDTHH:MM:SS
Parameters: date
Returns: null

read_date()

Returns the date from the RTC in ISO 8601 format - YYYY-MM-DDTHH:MM:SS
Returns: date

enable_output()

Enable the square-wave output on the SQW pin.
Returns: null

disable_output()

Disable the square-wave output on the SQW pin.
Returns: null

set_frequency(frequency)

Set the frequency for the square-wave output on the SQW pin.
Parameters: frequency - options are: 1 = 1Hz, 2 = 4.096KHz, 3 = 8.192KHz, 4 = 32.768KHz
Returns: null

write_memory(address, valuearray)

Write to the memory on the ds1307. The ds1307 contains 56-Byte, battery-backed RAM with Unlimited Writes
Parameters: address - 0x08 to 0x3F
valuearray - byte array containing data to be written to memory
Returns: null

read_memory(address, length)

Read from the memory on the ds1307
Parameters: address - 0x08 to 0x3F length - up to 32 bytes.
length can not exceed the available address space.
Returns: array of bytes

Usage

To use the RTC Pi library in your code you must first import the library:

from RTCPi import RTC

Next, you must initialise the RTC object:

rtc = RTC()

Set the current time in ISO 8601 format:

rtc.set_date("2013-04-23T12:32:11")

Enable the square-wave output at 8.192KHz on the SQW pin:

rtc.set_frequency(3)
rtc.enable_output()

Read the current date and time from the RTC at 1-second intervals:

while (True):
  print rtc.read_date()
  time.sleep(1)
